Mislocated/Edge Weld

Definition

A weld that is incorrectly positioned compared to current workpiece design. Edge welds are those welds that touch or extend beyond the edge of the workpiece.

Description

Refer to company standards for acceptability of edge welds.

Mislocated Edge Weld - Production Engineering

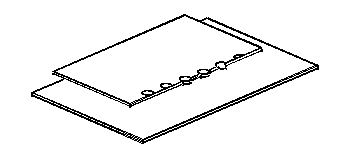

Fig. 1. Examples of edge welds

Detection

Preweld observation of tips on parts. Postweld visual inspection of parts to identify welds that are mislocated or extend beyond the edge of the workpiece.

Significance

Quality, Workplace Issues, Cost, Downtime, Maintenance, Throughput (cycle time; PPH) are all potentially affected by this condition. Special considerations are noted below:

  • Quality: Subsequent fitting or and operation of rubber seals may be impaired by edgewelds. Mislocated welds may affect NVH, sealing etc.

Possible Causes

Strong Possibilities

Weak Possibilities

Nonmatrix Possibilities

  • Edge welds can cause high levels of expulsion
