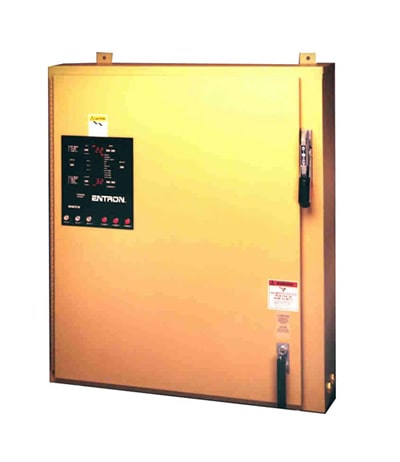

EN1003

Multiple Schedule/Multiple Sequence Three Phase DC Controls

The EN1003 Series Control is ideal for machines that require either large secondary currents or, by design, have high power losses caused by ferrous metals in the throat of the welder, such as parts of the machine and/or welded parts.

Capabilities:

  • 50 Unique Schedules
  • Chained and Successive Modes
  • Repeat / Non-Repeat
  • Weld and Valve Control Relays
  • 3 Valve Outputs
  • Multiple Weld Programming
  • Multiple Job Set-ups
  • Easily Programmed
  • Program only functions required

Options:

  • Networking – provides communication to multiple controls
  • Remote Data Accessories – enables remote programming and backup functions
  • Integrated Pressure Sense and Control
  • Water Flow Switch

Features:

  • 3 SCR Contactors
  • Spot Sequence
  • Pulsation Sequence
  • Upslope / Downslope
  • Quench / Temper
  • Forge Delay
  • Multiple Weld/Multiple Current
  • Preheat / Postheat
  • External Schedule Select
  • Seam Sequence
  • Brazing
  • Flash Welding
  • Retraction
  • Squeeze Delay
  • Stepper
