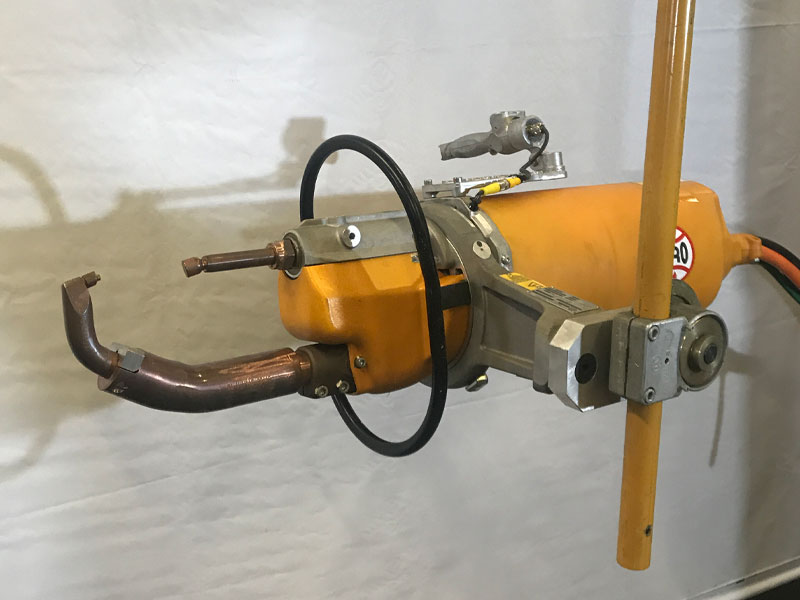

Used ARO Mid-Freq C-Type Weld Gun
Great condition ARO mid-freq c-type weld gun, only used temporarily for 30 days in a prototype design. Never used in production. Serial #: CMA5711A156J7M
Used ARO mid-freq c-type weld gun, original mfg. model #V142814000U FOR SALE. Immediate availability. Features include 70 KVA, 60 mm arm diameter, 70 mm total, trigger handle, working plus retract and customer choice or weld controls.
| Stock / Serial #: | CMA5711A156J7M |
| Manufacturer Name: | ARO |
| Type: | Mid-Freq C-Type Weld Gun |
| Mfg. Model #: | V142814000U |
| kVA: | 70 |
| Voltage: | 480 |
| Phase: | Three-Phase |
| Low Secondary Voltage: | N / A |
| High Secondary Voltage: | 8.5 |
| # of Tap Switch Positions: | N / A |
| Max. Secondary Current: | 30 K Amps |
| Throat Depth to Center of Platens: | N / A |
| Platen Size: | N / A |
| Throat Depth to Center of Electrodes: | N / A |
| Arm Diameter: | 60 mm |
| Holder Diameter: | See arm configuration picture |
| Electrode Size: | 5 RW |
| Cylinder Type: | Air |
| Cylinder Diameter: | N / A |
| Cylinder Stroke: | 70 mm total, working plus retract |
| Maximum Weld Force, #’s: | 1030 lbs. |
| Weld Control Manufacturer: | Customer selection |
| Weld Control Mfg. Model #: | Customer selection |
| Disconnect Size: | N / A |
| Initiation: | Trigger handle |
| General Condition: | Great condition ARO gun, only used temporarily for 30 days in a prototype design. Never used in production. |
| Warranty: | 6-Months |
| Availability: | Immediate |
