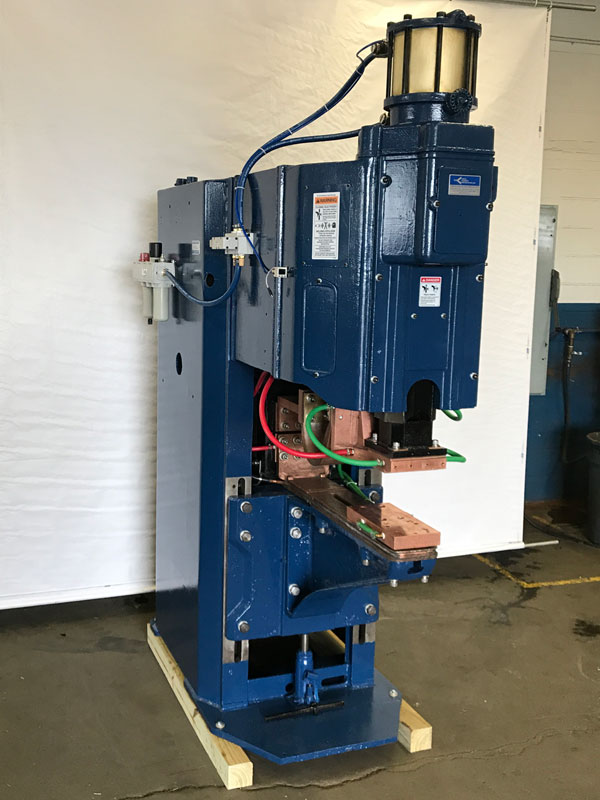

[SOLD] Used Taylor Winfield Projection Welder
Rebuilt Taylor Winfield Projection Welder [ serial #: 20603 ] in excellent condition including: rebuilt transformer and cylinder. New parallel water manifolds, water hoses, IFM flow switch, air prep/valve, air flow controls, air pressure switch.
Rebuilt Taylor Winfield projection welder, FOR SALE from Weld Systems Integrators. Immediate availability upon customer weld control selection. Features include – 480 VAC, single-phase, 150 KVA, 8″ diameter weld cylinder, 4″ stroke, 30″ throat depth to center of electrodes and 6 month warranty.
| Stock / Serial #: | 20603 |
| Manufacturer Name: | Taylor Winfield |
| Type: | Projection Welder |
| Mfg. Model #: | N / A |
| kVA: | 150 |
| Voltage: | 480 |
| Phase: | Single |
| Low Secondary Voltage: | N / A |
| High Secondary Voltage: | N / A |
| # of Tap Switch Positions: | Hi / Low and 4 Position tap |
| Max. Secondary Current: | 18.8 K Amps |
| Throat Depth to Center of Platens: | 30 |
| Platen Size: | Non T Slot, 8″ x 8″ – Mounting Pad |
| Throat Depth to Center of Electrodes: | N / A |
| Arm Diameter: | N / A |
| Holder Diameter: | N / A |
| Electrode Size: | N / A |
| Cylinder Type: | Air |
| Cylinder Diameter: | 8 |
| Cylinder Stroke: | 4 |
| Maximum Weld Force, #’s: | 4200 lbs. |
| Weld Control Manufacturer: | Customer Selection |
| Weld Control Mfg. Model #: | Customer Selection |
| Disconnect Size: | N / A |
| Initiation: | Customer Selection |
| General Condition: | Rebuilt Welder in excellent condition including: rebuilt transformer and cylinder. New parallel water manifolds, water hoses, IFM flow switch, air prep/valve, air flow controls, air pressure switch. |
| Warranty: | 6-Months |
| Availability: | Immediate upon customer weld control selection |
