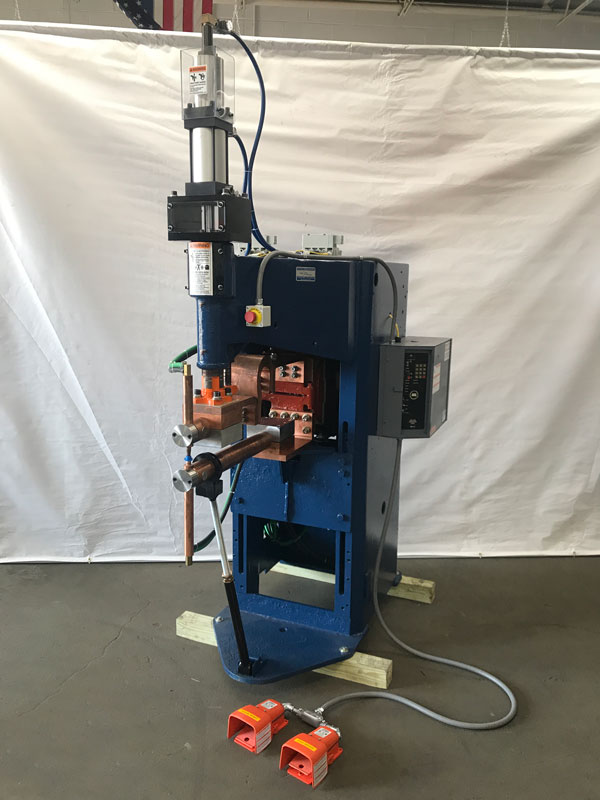

Used Taylor Winfield Spot Welder
Used Taylor Winfield spot welder FOR SALE [ stock / serial #: 20593 ]. Remanufactured Welder – welder stripped of all components, primed, and painted. Transformer reconditioned, new air cylinder, filter, regulator, lubricator, color coded air hosing, and flow control valves. New water system, including manifolds, strainer, LOTO shut offs, and color coded hosing. New holders and electrodes.
| Stock / Serial #: | 20593 |
| Manufacturer Name: | Taylor Winfield |
| Type: | Spot Welder |
| Mfg. Model #: | n / a |
| kVA: | 100 |
| Voltage: | 440 |
| Phase: | Single |
| Low Secondary Voltage: | N / A |
| High Secondary Voltage: | N / A |
| # of Tap Switch Positions: | 8 |
| Max. Secondary Current: | 20,000 |
| Throat Depth to Center of Platens: | N / A |
| Platen Size: | N / A |
| Throat Depth to Center of Electrodes: | 32″ |
| Arm Diameter: | 3″ |
| Holder Diameter: | 1-1/4″ |
| Electrode Size: | #2 MT |
| Cylinder Type: | Air |
| Cylinder Diameter: | 4″ |
| Cylinder Stroke: | 4″ |
| Maximum Weld Force, #’s: | 1,000 |
| Weld Control Manufacturer: | Intertron |
| Weld Control Mfg. Model #: | 105 |
| Disconnect Size: | n/a |
| Initiation: | 2 Stage Foot Switch |
| General Condition: | Remanufactured Welder – welder stripped of all components, primed, and painted. Transformer reconditioned, new air cylinder, filter, regulator, lubricator, color coded air hosing, and flow control valves. New water system, including manifolds, strainer, LOTO shut offs, and color coded hosing. New holders and electrodes. |
| Additional Details: | Welder also has an adjustable retractable air cylinder for maximum production versatility. A new two stage foot switch is installed. Welder is fully tested as is ready for production use. |
| Warranty: | 1 Year |
| Availability: | Immediate |
